Vajab lisaks seinasisest iBox-i 01500180

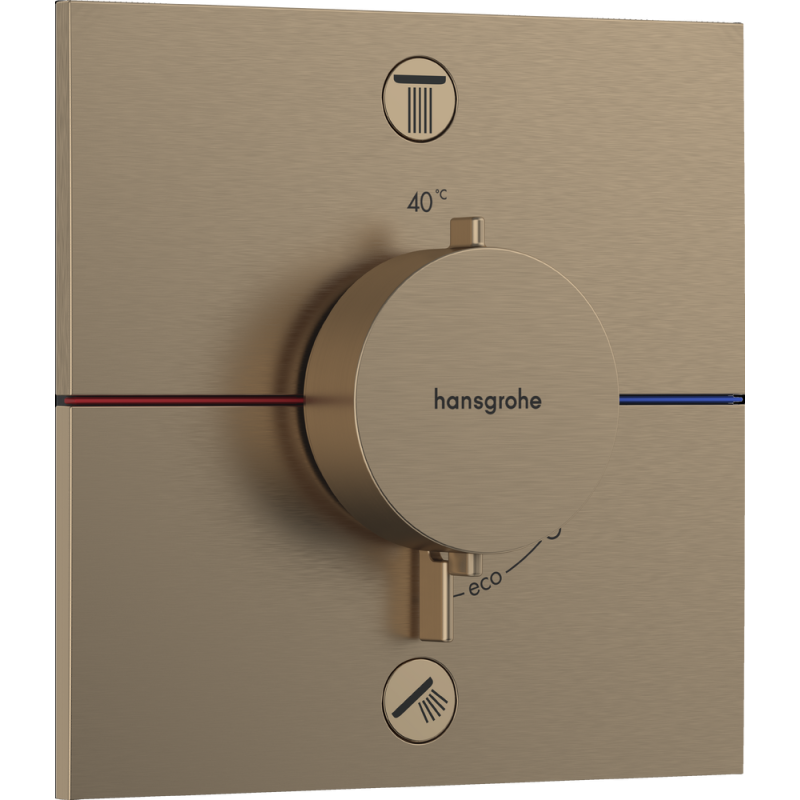

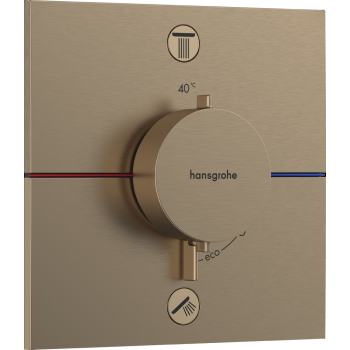

Article features

• 2 functions
• simultaneous use of several outlets
• comfortable turning on / off of one outlet with large Select-paddle
• water flow control with stop function
• thermostat cartridge, Start/stop valve to operate the functions
• maximum flow rate at 1 bar: 14 l/min
• maximum flow rate at 3 bar: 26 l/min
• flow rate upper outlet: 23 l/min
• flow rate lower outlet: 23 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• flat escutcheon for more space in the shower
• escutcheon can be aligned by +/- 3°
• easy installation due to pre-assembled function block
• handles always at the same height regardless of the installation depth of the basic set
• Safety stop at 40 °C
• temperature limitation adjustable
• the thermostat offers the possibility for thermal disinfection
• with integrated safety combination EN 1717
• material button: metal
• material handles: metal
• connection type: basic set iBox universal 2 (# 01500180)
• thermostat is delivered with buttons Rain small, Rain large, hand shower, Waterfall, bath tub
