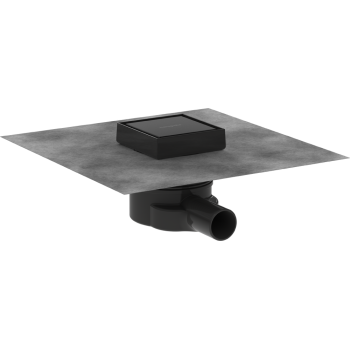

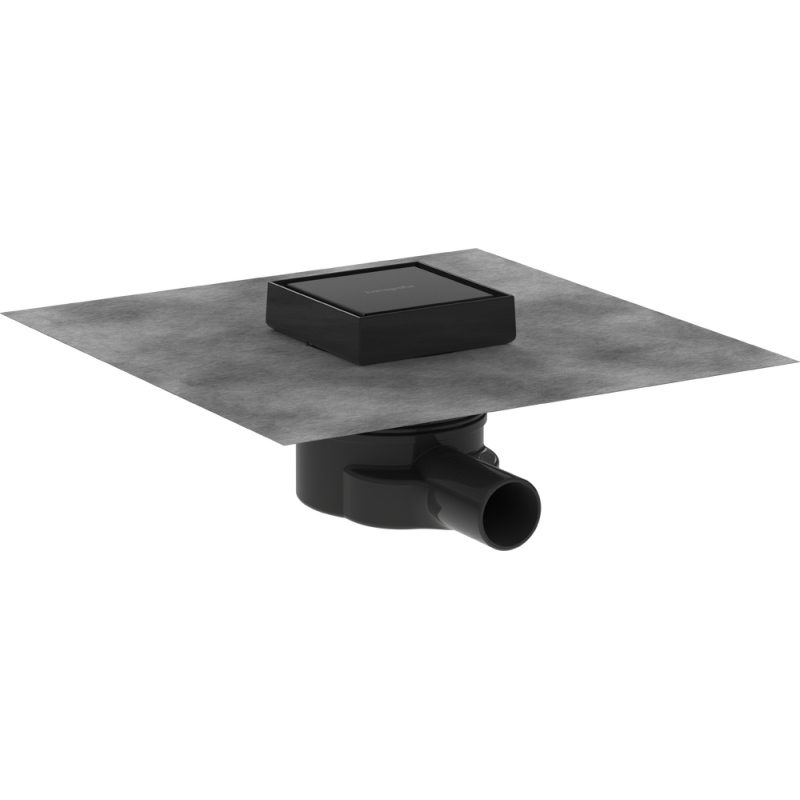

RainDrain Point Complete set point drain 100/100 tileable rear cover

Article features

• consists of: point drain, installation set, pre-assembled sealing membrane, base set, siphon, screed protection cover
• grate material: Stainless Steel 304 (1.4301)
• pre-assembled sealing membrane
• water seal: up to max. 50 mm
• connection diameter: DN40
• direction of outlet: horizontal
• easy to clean surface
• height adjustable by 10 mm
• up to 41 l/min drainage capacity
• where to use: new construction, renovation
• tile thickness: up to 18 mm
• removable water seal
• rotatable and adjustable siphon body
• easy to clean siphon
• grate removal tool allows easy removal of the finish set
• with removable hair strainer
• type of odour seal: fluid
• minimal construction height 54 mm
• material siphon: ABS
• mounting type: free in the floor
• tileable on the back side
• simplified installation due to the cutable siphon
• tile inlay depth: 12 mm
• suitable for primary drainage
• third party controlled acc. DIN EN 1253-3
