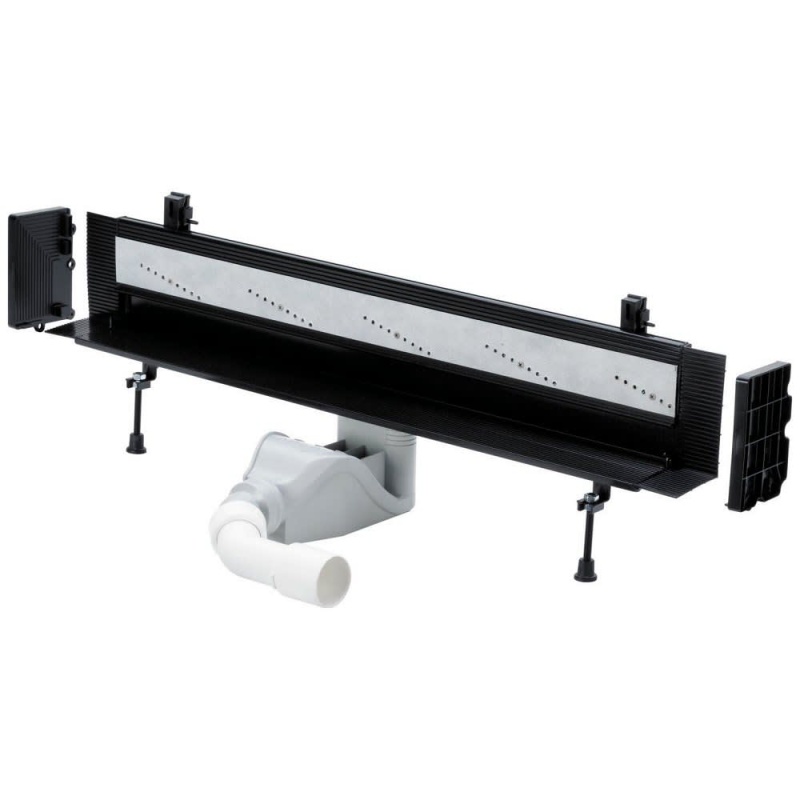

Viega Advantix Vario wall, seinatrapp 30-120cm, h=90mm
Kaubamärk:
Ühik: tk
Tarneaeg: 1-3 päeva
736552
-seinasisene renntrapp
-vajalik seina paksus min 25mm
-renni pikkus kohapeal sobivasse mõõtu lõigatav, 30-120cm
-vajab lisaks katteresti
-trapi sügavus reguleeritav 90-165mm
-plaadi paksus max 28mm
-vooluhulk 0,45-0,75l/sek
-

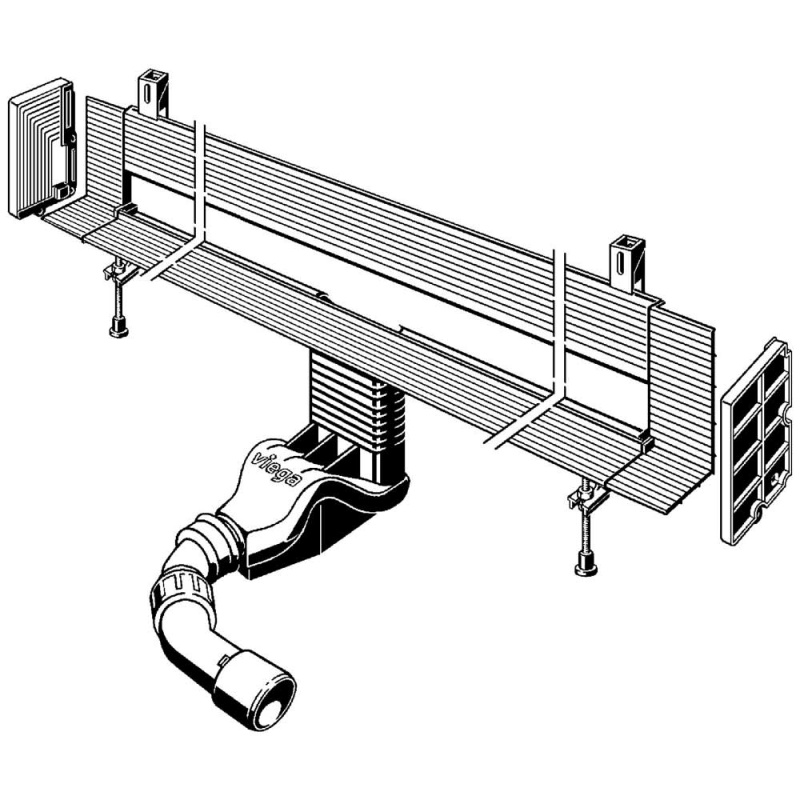

Advantix Vario wall drains
-
Routing variants: In the wall, at the right or left at the side wall, in the shower niche
-

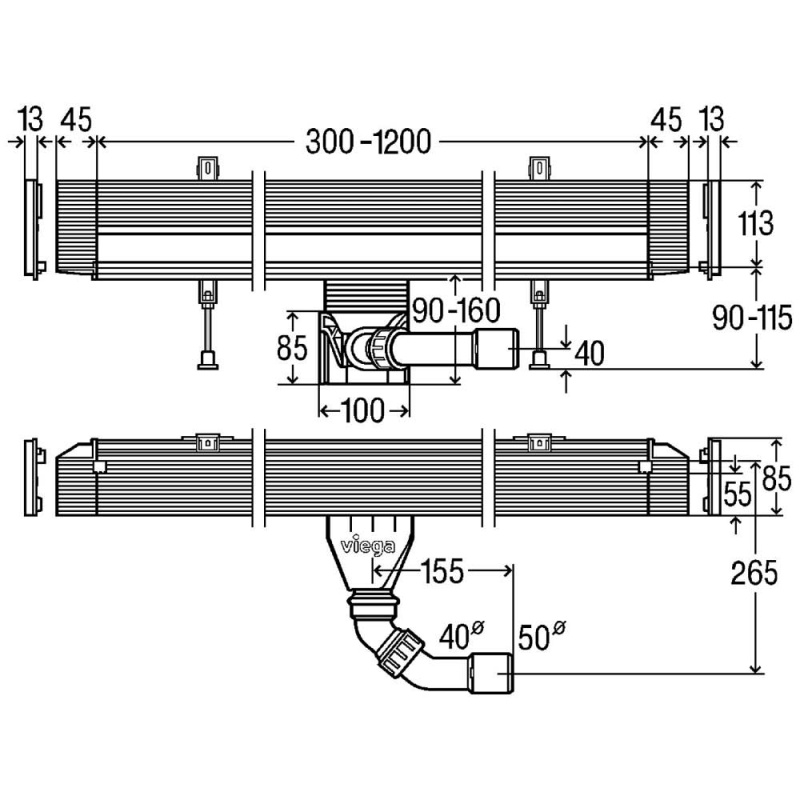

Routing lengths 300–1200 mm
-
Wall installation depth 25 mm
-
Wall/floor covering thickness max. 28 mm
-
Drain height adjustable 90–165 mm
-
Drainage capacity 0.6–0.75 l/sec
-
With a stainless steel grate the drain slot height 20 can be reduced to
8 mm over and under the grate.
-
Laying the floor covering without slope cuts
-
Convenient cleaning of base unit
The assembly steps for the wall drain and the shower channel are almost identical.
-
Cut channel base unit to length with a hacksaw and saw guide.
-
Plug on and screw closing caps.
-
Determine the construction height of the finished floor, adjust the drain using the adjustable feet, shorten and install height adjustment piece.
-
Align the shower channel and connect it with the drain pipe.
Finally it is necessary for the wall drain to align and install the tile rail in coor-dination with the tiler.
-
