Article features

• 2 functions

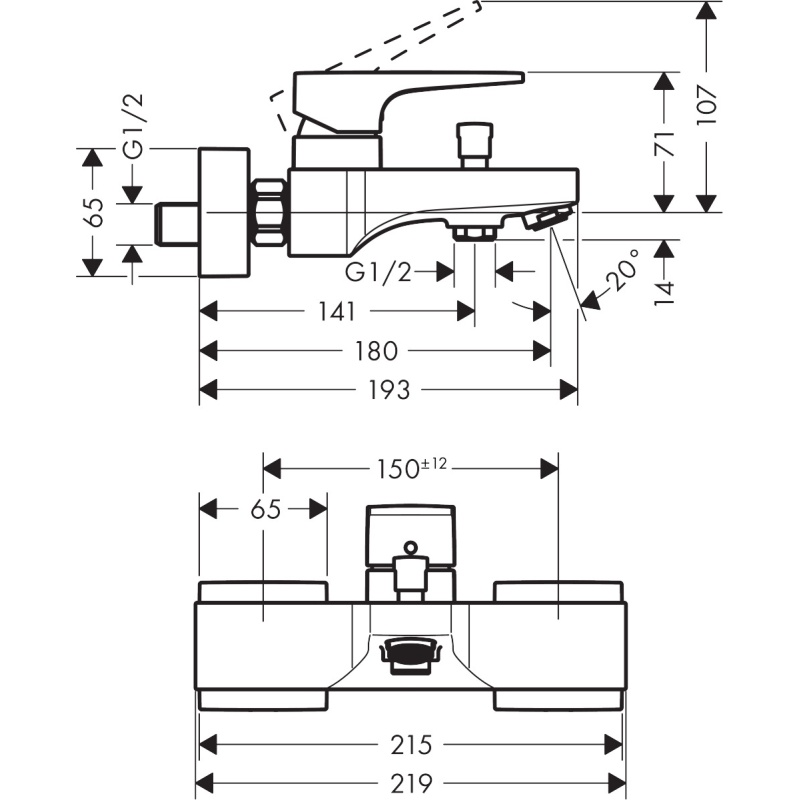

• projection 180 mm
• connection type: s-shaped connections
• centre distance: 150 ± 12 mm
• spray type mixer: normal spray
• flow rate for bath spout at 3 bar: 22 l/min
• flow rate of hand shower at 3 bar: 16 l/min
• ceramic cartridge
• temperature limitation adjustable
• diverter with automatic resetting
• protected against backflow, according to DIN EN 1717
• suitable for continous flow water heaters
• connection dimension: DN15
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
